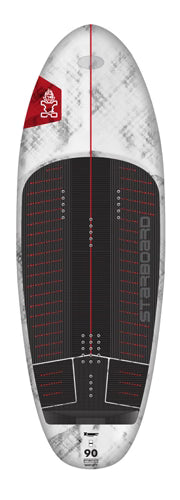

Take Off Foilboard

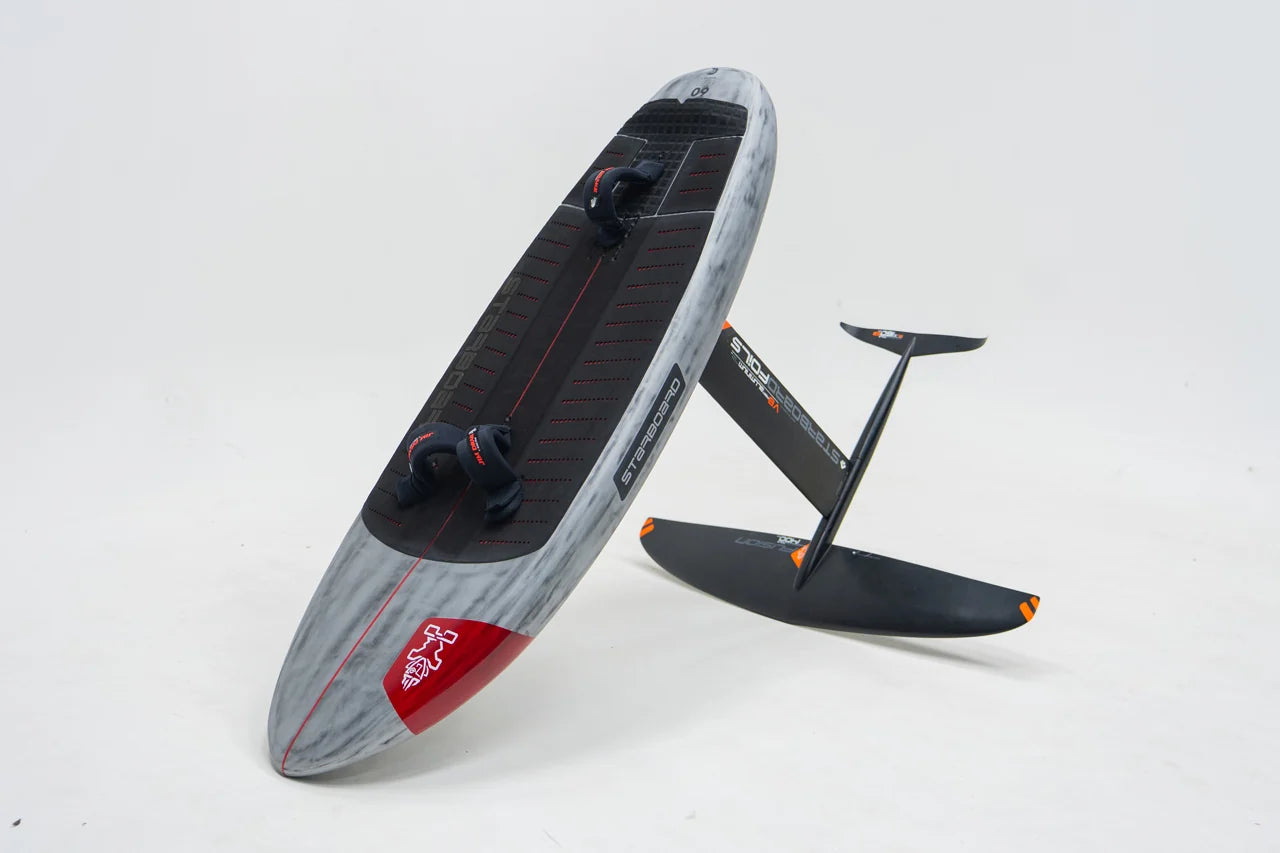

The compact outline delivers responsive handling, smooth touchdowns and precise control for dynamic wave riding.

Balanced volume, refined rocker and optimized footstrap positioning provide stability and control for jumps, turns and progressive freestyle maneuvers.

Larger sizes perform well for SUP Foiling and Freeride Wing Foiling, while the smaller boards excel in Wave and Freestyle Wing Foiling, allowing riders to choose the size that best suits their riding style.

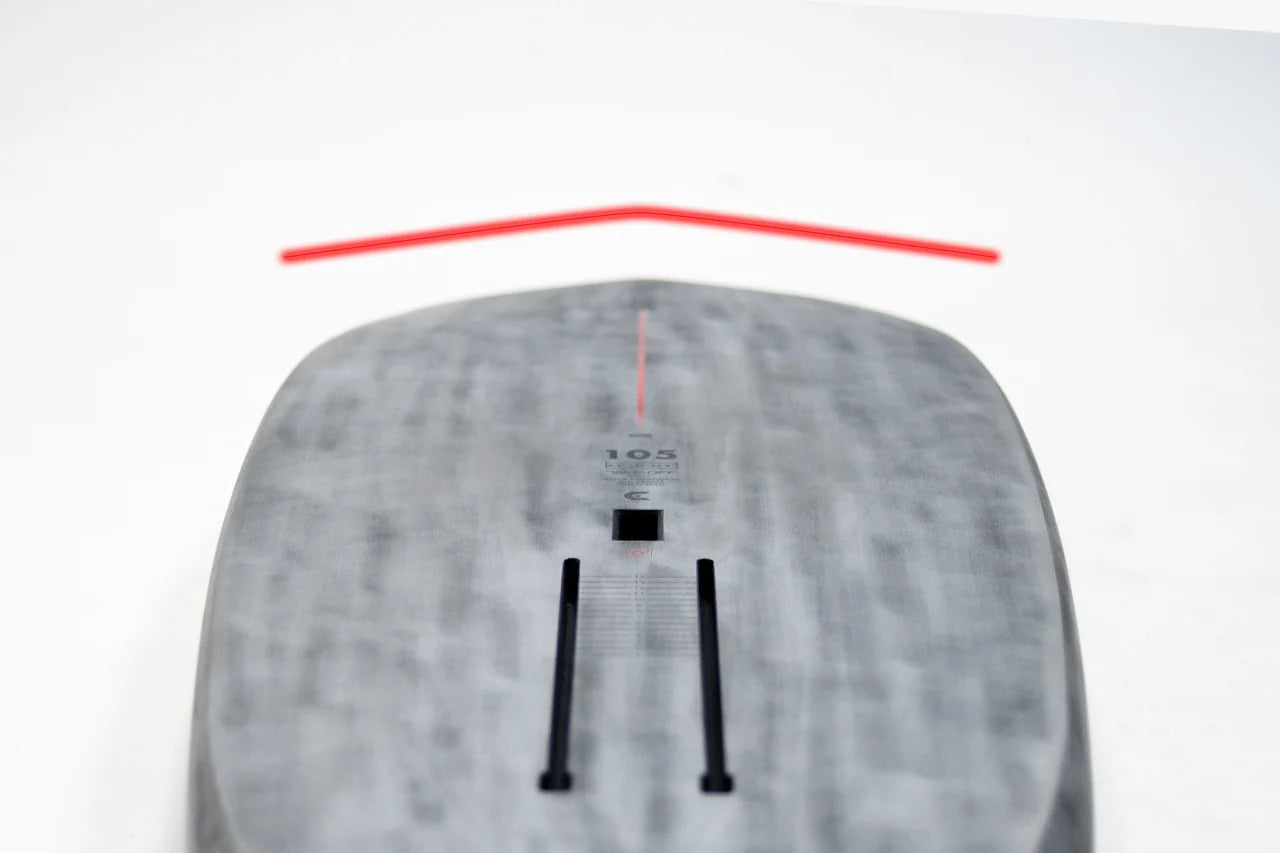

The Vee nose design softens touchdowns and helps the board recover smoothly after jumps, turns and maneuvers.

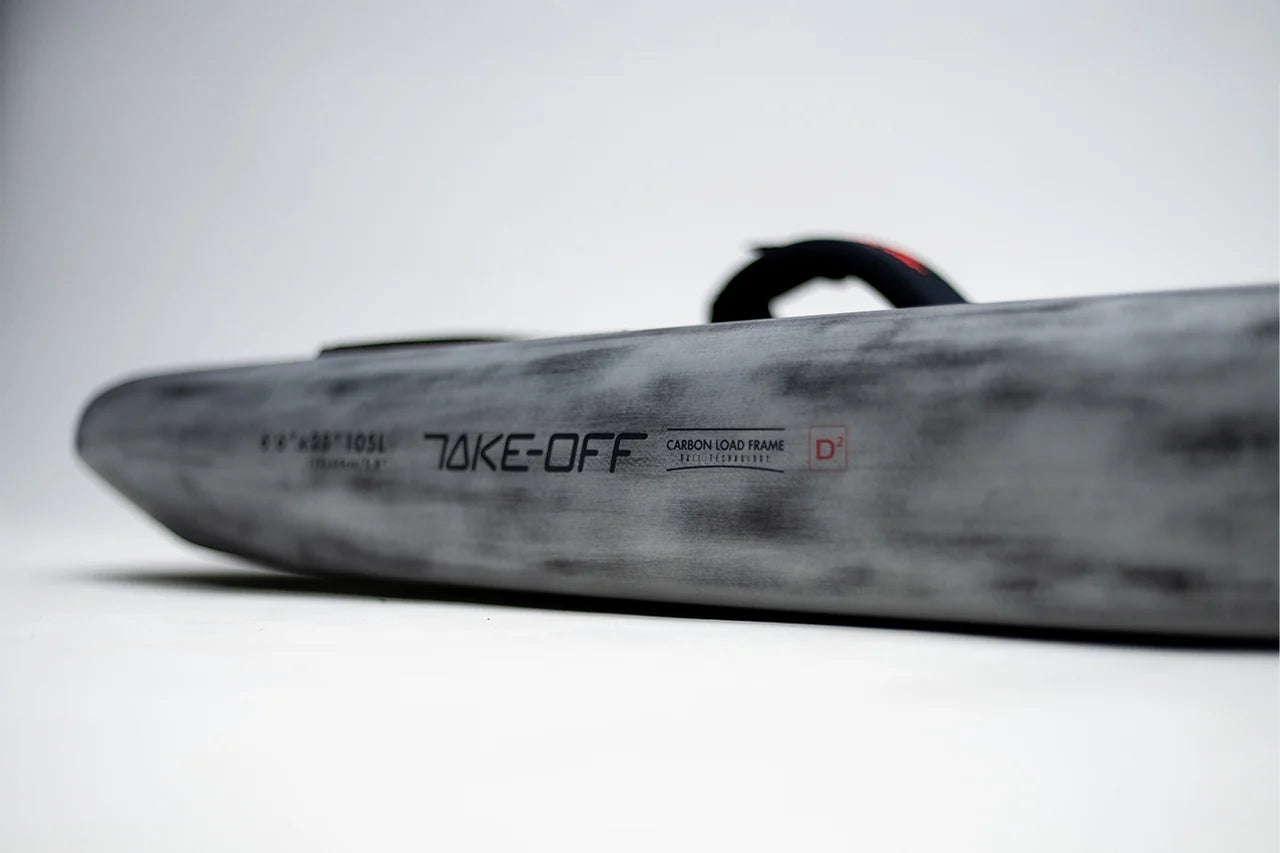

Balanced nose, tail and rail volume provides stability before lifting onto foil and control while flying.

A pulled-in nose improves turning and helps prevent the nose catching through waves, while the fuller tail provides buoyancy and stability when building speed to lift onto foil.

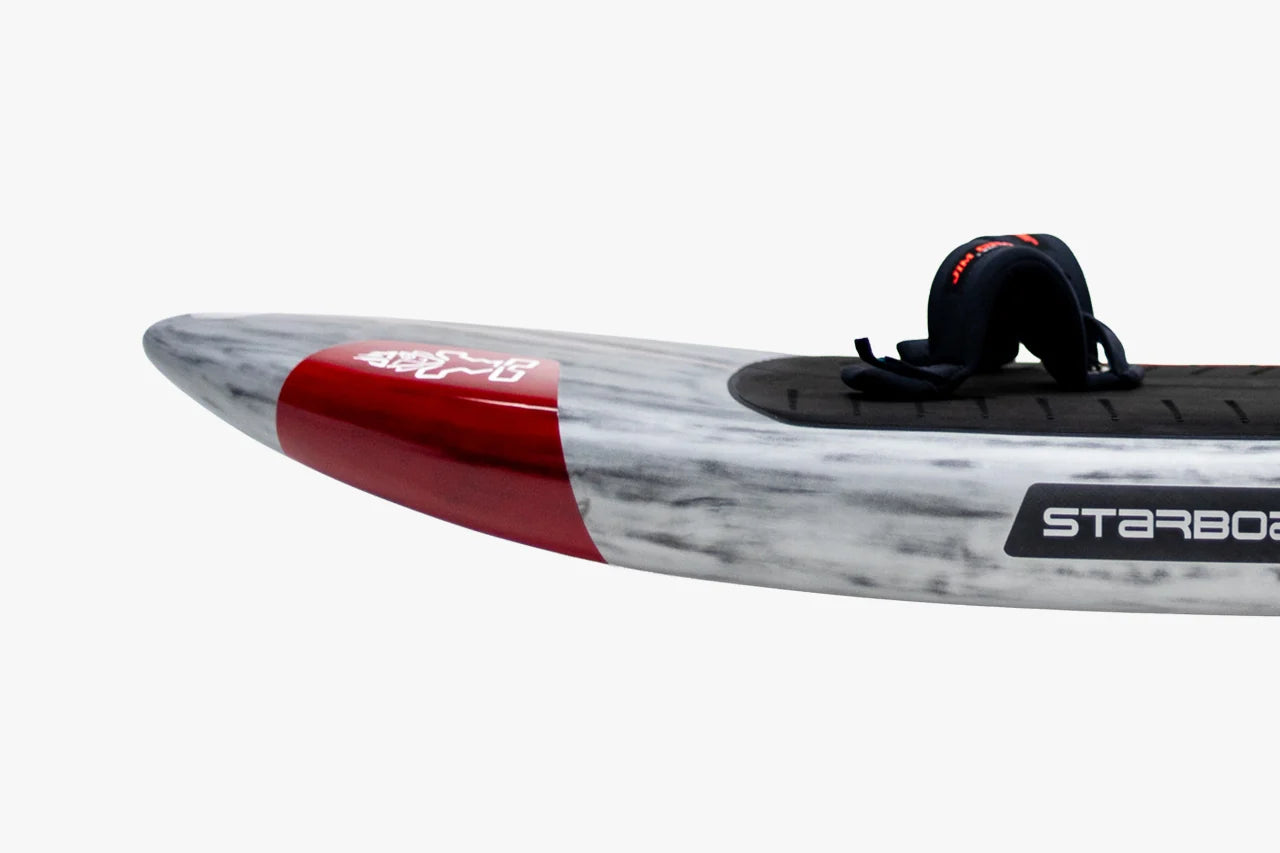

The nose rocker is slightly reduced, helping the board accelerate faster and lift onto foil earlier while remaining forgiving during touchdowns.

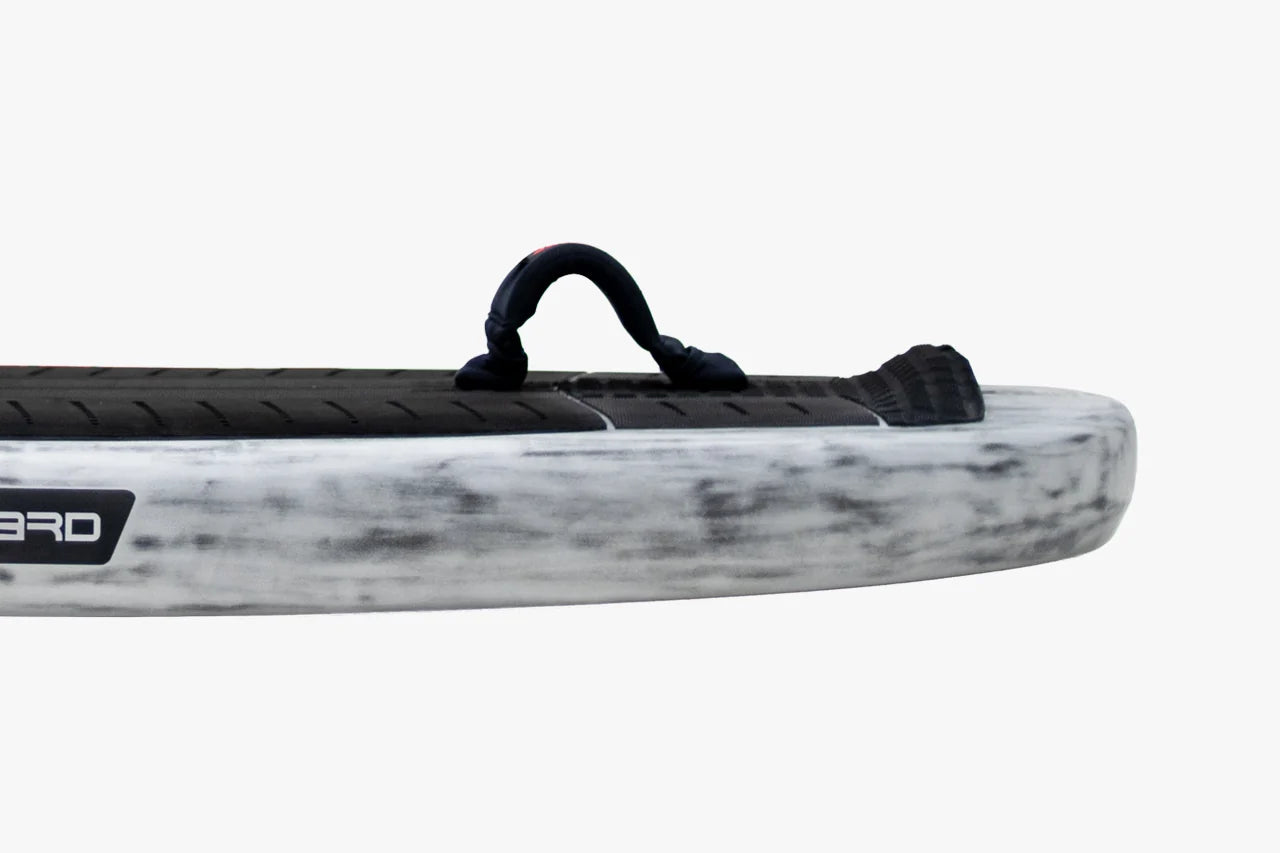

Additional tail volume improves trim balance and stability when building speed onto foil.

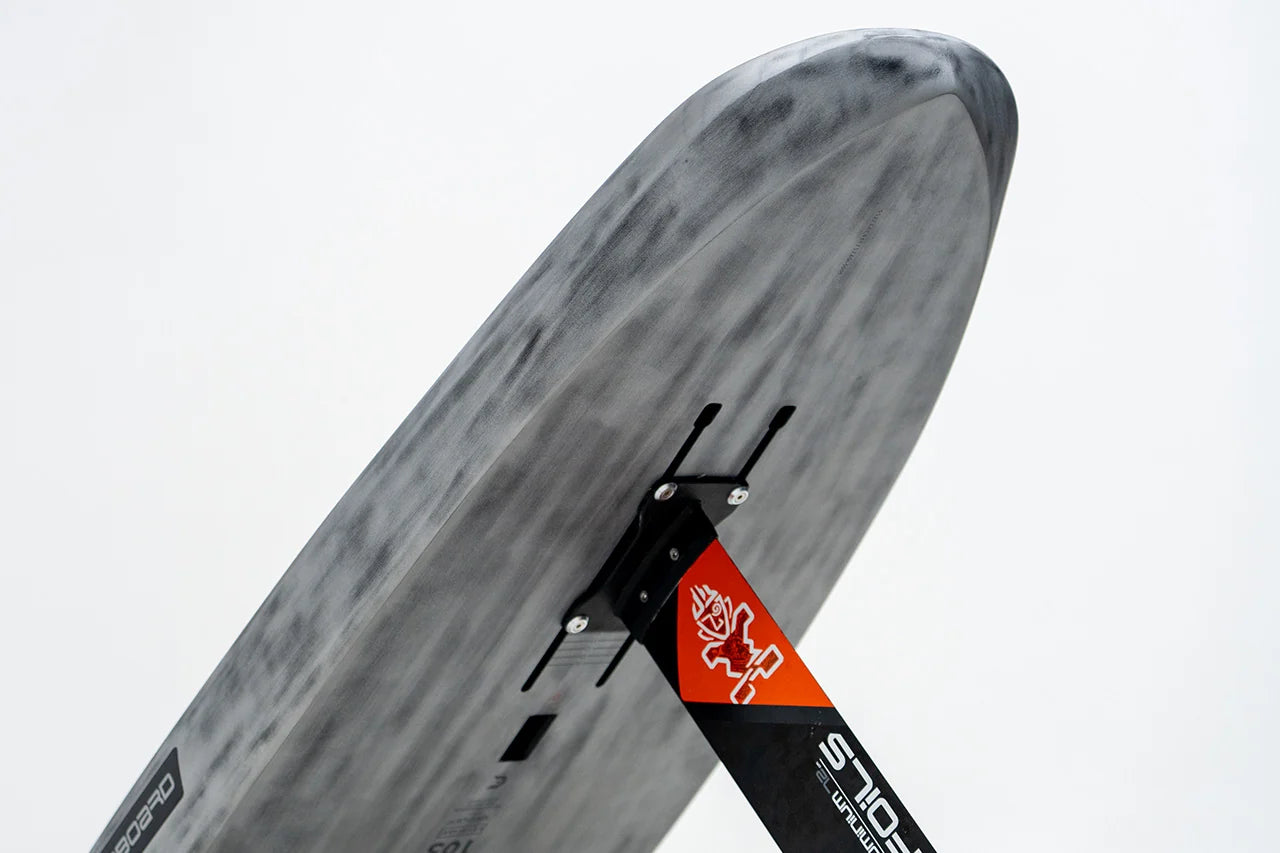

The foil box is moved slightly forward to improve trim when lifting onto foil and to support Freestyle maneuvers.

Footstrap positions are refined for improved control during wave riding and freestyle maneuvers.

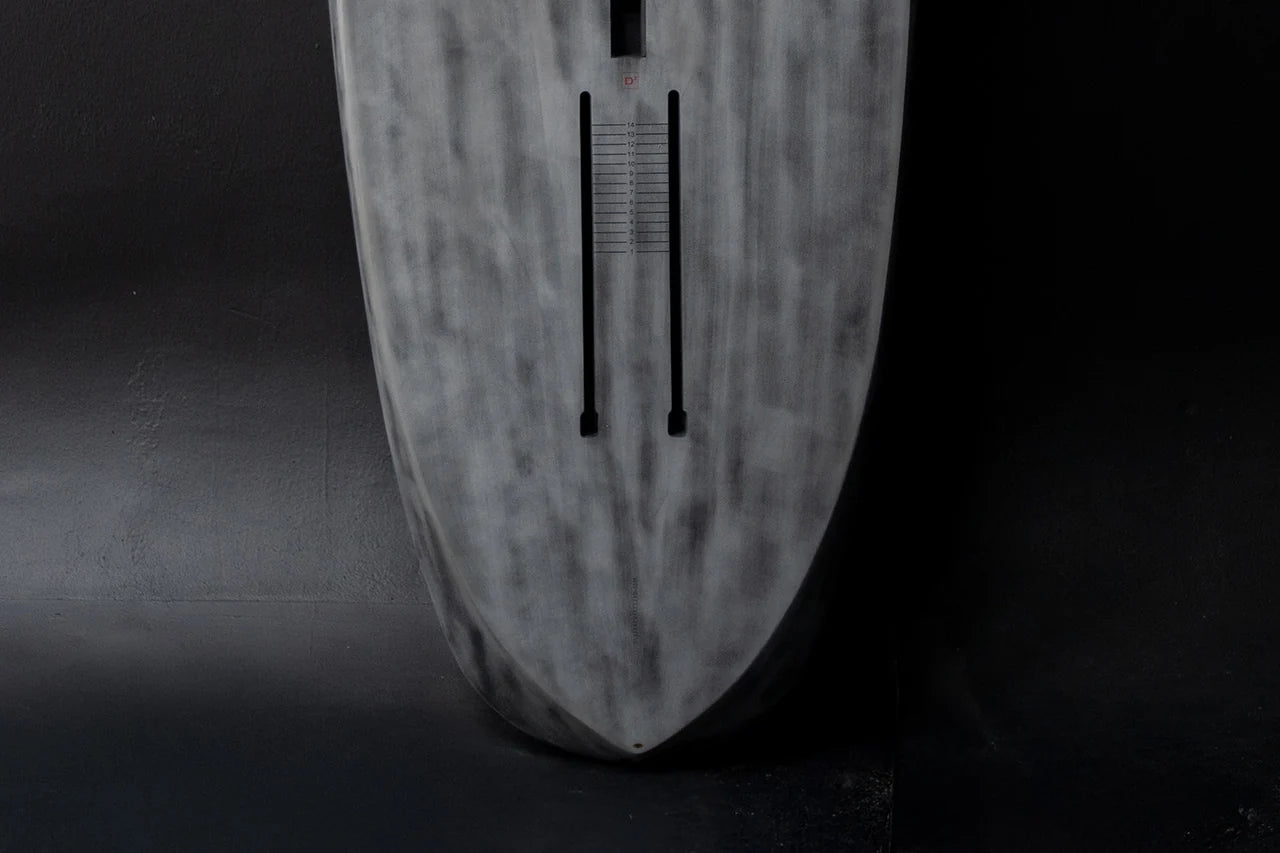

Reinforced foil boxes compatible with most foil brands. 6’0” and larger boards use a 14″ box, while 5’7” and smaller boards use a 12″ box for compact wave and freestyle performance.

ULTRA-LIGHTWEIGHT PERFORMANCE

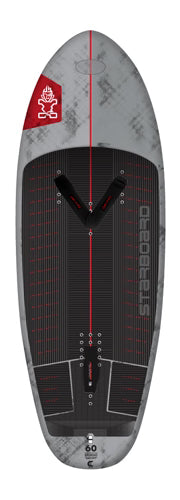

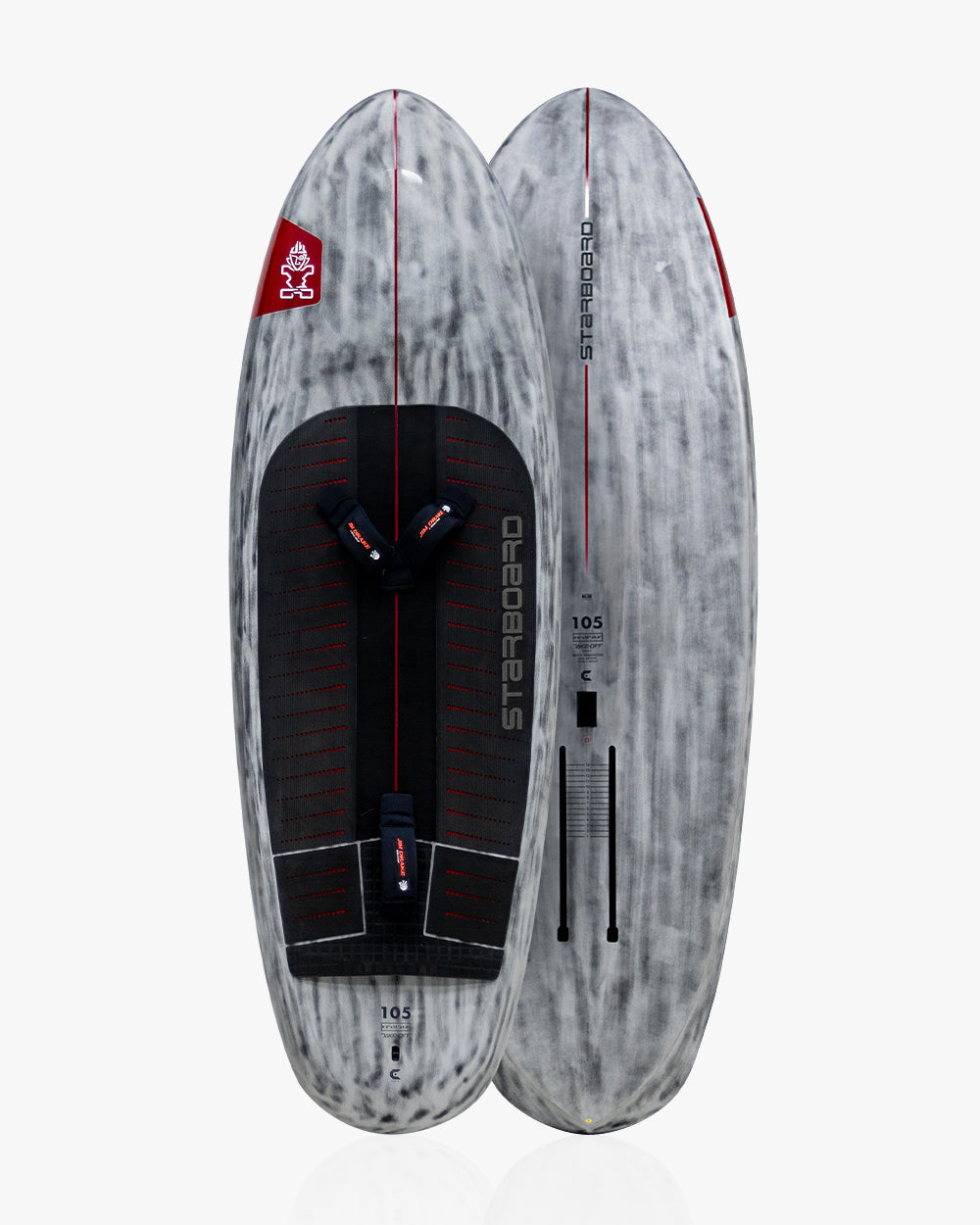

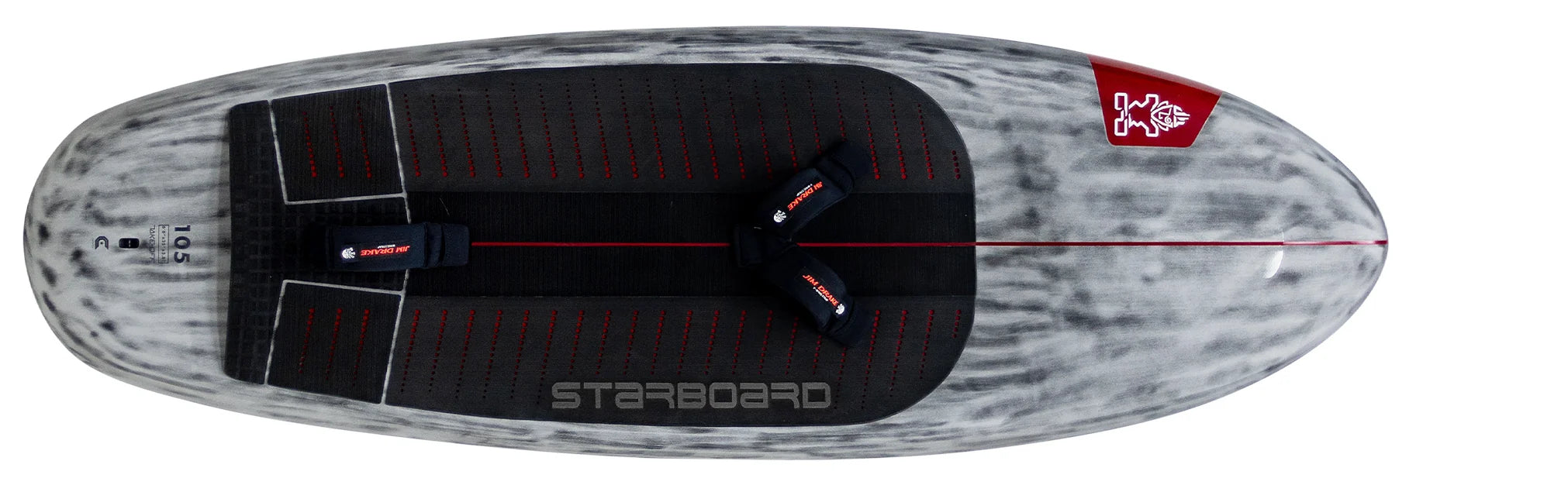

Carbon D2 is the lightest performance construction in the range, reducing board weight for faster acceleration, earlier lift onto foil and efficient flight.

Unlike XTEC constructions that use expanding epoxy resin, Carbon D2 uses a traditional epoxy lamination to minimize weight while maintaining structural strength.

On the Take Off, an additional PVC standing area is integrated to improve impact resistance during freestyle jumping and wave riding.

› Semi-Custom Traditional epoxy lamination for reduced weight
› Additional Carbon standing reinforcements for stiffness and responsiveness
› PVC standing area reinforcement (Take Off) for impact resistance during jumps
› Carbon Load Frame rail band for increased stiffness and breaking strength
› Foil box Carbon reinforcement for high-load durability
› PVC Omega stringer to prevent buckling in front of the foil box

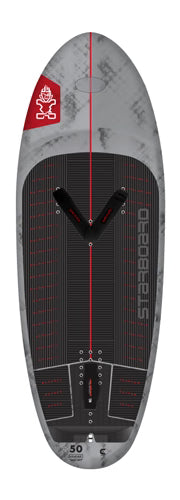

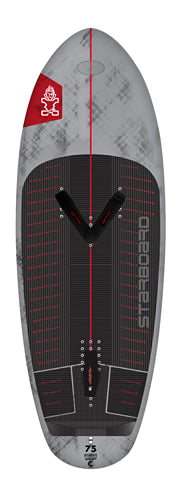

Available sizes: 50 / 60 / 75 / 90 / 95 / 105 L

LIGHTWEIGHT PERFORMANCE

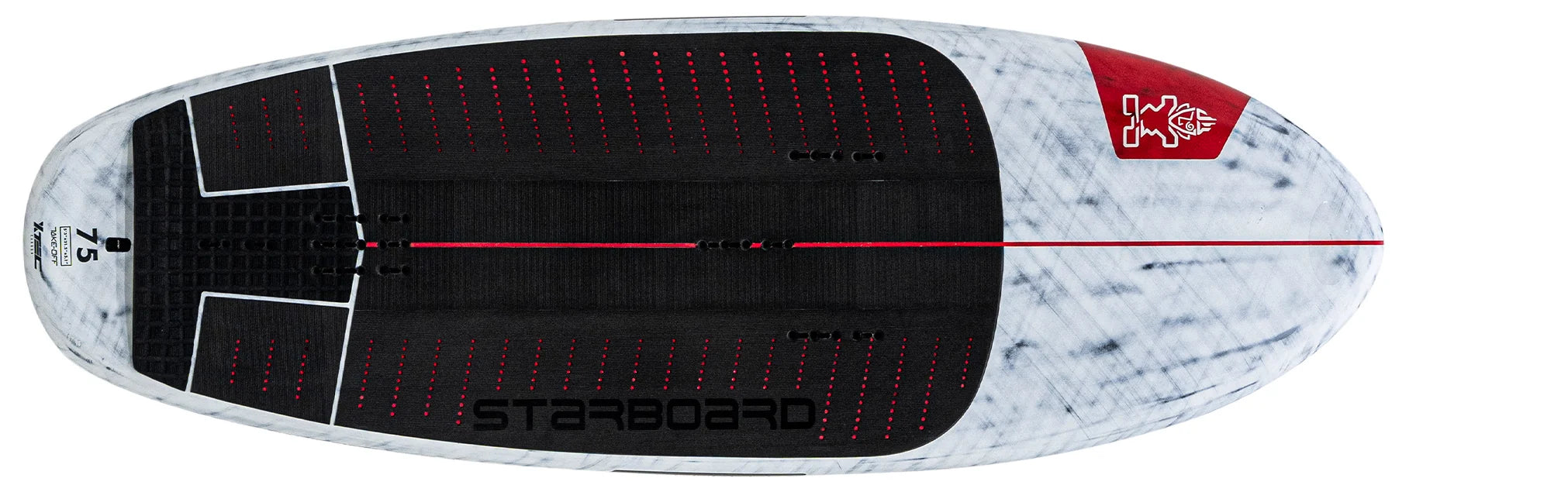

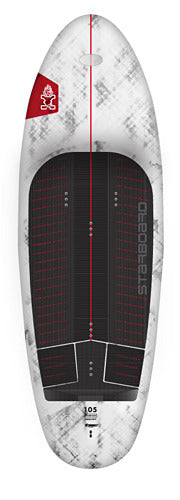

XTEC Carbon D2 builds on the XTEC Carbon construction while reducing overall board weight. The D2 structure optimizes the internal layup to remove unnecessary material, creating a lighter board that accelerates easily, lifts onto foil sooner and requires less energy to stay flying.

Like XTEC Carbon, it uses expanding epoxy resin to create a durable sandwich structure that maintains strength and impact resistance.

A Carbon Load Frame rail band increases stiffness and breaking strength, while Carbon reinforcements around the foil box strengthen the highest load area.

› D2 lightweight structure: Optimized internal layup reduces board weight for easier acceleration and earlier lift onto foil.
› Expanding epoxy sandwich structure: Maintains strength and impact resistance while supporting the lightweight D2 design.
› Carbon Load Frame rail band: Increases overall stiffness and total breaking strength.
› Foil box Carbon reinforcement: Strengthens the board in the highest load area during foiling.
› PVC Omega stringer: Extended arrow-shaped PVC stringer spreads loads and helps prevent buckling in front of the foil box.

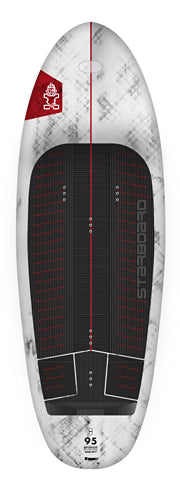

Available sizes: 75 / 90 / 95 / 105 L
